Create PolyTriangles from Proxy Elements

AlarmCAD for AutoCAD  Polytriangles can be created from AutoCAD® Proxy Elements.

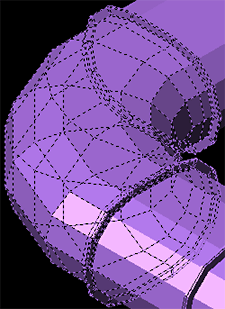

To run the command, access the Commands menu/Create Polytriangles from Proxy Elements submenu. Next, using the cursor, select the area of the drawing containing proxy elements. The command recognizes proxy elements from the AutoCAD® program and transforms them into AlarmCAD for AutoCAD polytriangles. To view the results of the command, please see the image on the left.

For additional information on proxy elements, please refer to the AutoCAD® help file.
