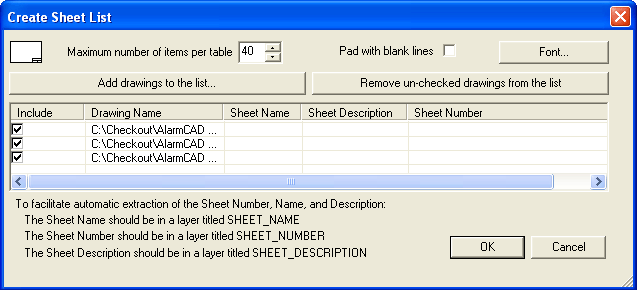

Create a Sheet List allows users to assign drawings to a sheet list. After drawings are added to the list via the Add drawings to the list button, (see above image), they will be transferred into a report format placed directly into the drawing, as in the below image.
Insert the maximum number of items per table in the top left field of the Create Sheet List dialog.
Pad with Blank Lines, if enabled, will insert extra rows into the report. So, leave this option alone if you would like the report to fit the exact amount of inserted drawings, with no extra rows and lines.
Remove unchecked drawings button will delete drawings that do not have their Include option boxes checked.
