Panel Configurators

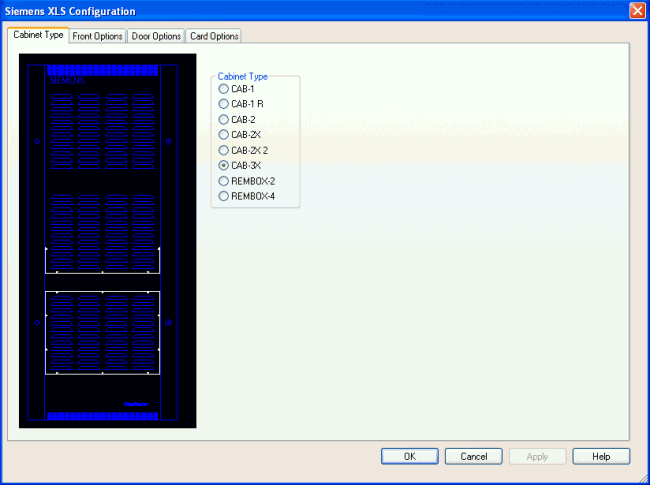

When XLS Panel Configuration is selected from the Panel Configurators menu, the Siemens XLS COnfiguration dialog box appears, allowing the user to choose from various cabinet types for an alarm panel. In the Cabinet Type tab, select the type of cabinet desired and click the OK button.
