Distributed Calculation Methods,
such as Supervisory, dB
Loss, Strobe, etc. are
defined within AlarmCAD for AutoCAD, and are shown in red (left image).
Users can add new calculation methods by accessing the Parts
Database menu/Define Calculation

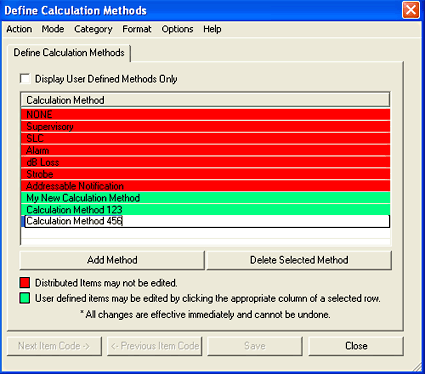

Method submenu. The Define Calculation
Methods dialog appears on the left. Enter new methods by clicking
the Add Method button, which allows
users to enter information in the next available row. User-added methods
display in green, as in the left
image.
Filter the list by User-Defined Methods Only by placing a checkmark in the corresponding option box at the top left of the dialog.
Delete user-defined methods in the list by hitting the Delete Selected Methods box.
Please Note: Distributed
Calculation Methods may not be deleted from the list.
When finished with modifications, simply press the Close button, as the Save button is disabled in this dialog.
