Riser Detail: Sample Reports .gif)
.jpg)
Each of the three Riser Detail styling
options are shown below: Device
Priority, Circuit Priority, and Backbone. All are examples generated
from of a single AlarmCAD for AutoCAD drawing.
Depending on the needs of each manufacturer,
one report style may be more beneficial than another. Once the Riser Detail
Report is generated, the display of Labels, Lines, Symbols, etc. can be
adjusted by double-clicking the item in the report, and pulling up its
properties page.

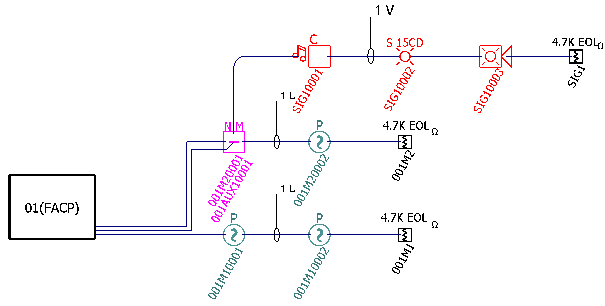

Device Priority
With all but one default option turned
on (no level site line shown), each device displays only once in the diagram.
Notice how the pink Notification Module (NM) requires two circuits. To
optimize viewing, each symbol's label appears below the appliance at a
60° angle.
Please
note that Strobes' candela (CD) ratings appear above the symbol to avoid
interfering with circuit paths.
|
.gif)
|

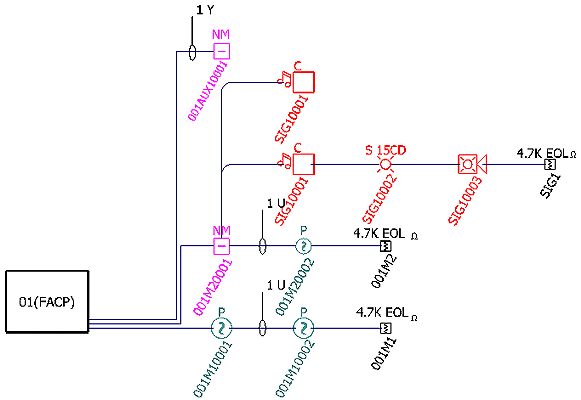

Circuit Priority
The Circuit
Priority option is shown above with all but one default option
turned on (does not show level site lines). Each circuit and sub-circuit
displays in the report and is shown separately with its corresponding
devices. Notice how the pink Notification Module (NM) requires two circuits
that now display separately, so the Module is shown twice.
|
.gif)
|

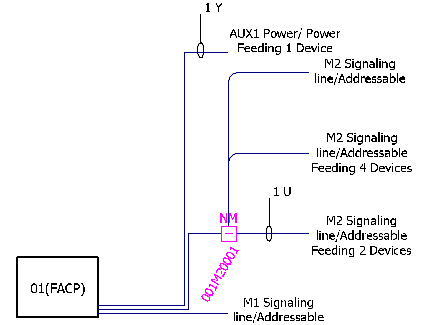

Backbone
The
Backbone
option above illustrates all but one default option tuned on (does not
show level site lines). Backbone shows a more general overview of the
system. Each circuit branch displays along with its device count. The
source (Panel) is shown, but not every individual device is displayed.
|
.gif)
