The Set Circuit Names command allows users to modify circuit names and 'frozen' status within one dialog.

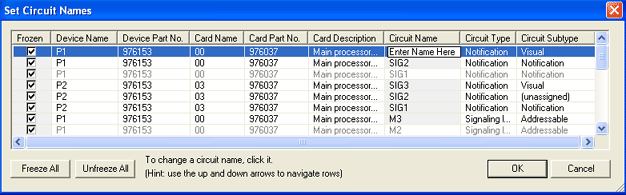

Please note in the image below that the Circuit Name column contains editable fields so users can customize names directly within the cells.
Each sortable column header can be arranged in ascending or descending order by single-clicking the desired header.
Locate newly-customized Circuit Names within the device's Appliance Tab.
Circuit Names will also appear in a variety of reports, such as the Appliance List Report.
Please also be aware that circuit names of circuits already in use cannot be edited through this dialog. If users attempt to change an already-assigned circuit name, a warning appears: This circuit is in use. The name cannot be changed.
Set Appliance Device and Point Type
