Access: Commands menu/Set Appliance Text submenu

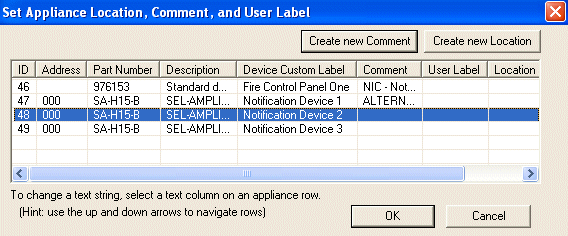

Set Appliance Text presents the ID, Address, Part Number and Description of a selected device or multiple selected devices. The additional fields offer additional information on the device(s) including Device Custom Label, Location, Comment, User Label and Location input. The additional data appears on a variety of reports.
Each sortable column header arranges data in ascending or descending order. Expandable column headers are widened and narrowed using the horizontal scroll bar.
.gif)
Create New Comment button provides an editable dialog enabling users to enter customized comments that are not already available in the drop-down menu.
If no appropriate location is available from the drop-down menu, customize it by pressing the Create new Location button. The Location column contains a drop down menu with available choices for the physical location of the appliance, such as "Above Ceiling," "On Ceiling," etc.
Device Custom Label column contains editable fields for users to enter a customized label for the device.
User Label column provides editable fields as well.
Please Note: Data entered in this dialog will update the Appliance Tab's Label dialog box, and will transfer data to reports, such as the Appliance List Report.
