Access: File / Print Alarm Reports / Cable / Circuit Report
The Cable/Circuit
report shows information on circuit types and wire lengths and gauges
for your drawing. Data includes: source, card, circuit and circuit type,
abbreviation, style, manufacturer and part number, type, description,
and wire gauge and length.

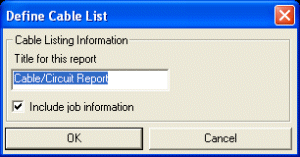

Generate report data as follows:
If desired, enter a title for the report in the Title field.
To include job information in the header, make sure the Include Job Information box is checked. (Job settings are maintained in the Job Settings dialog box.)
Click OK to preview the report, or click Cancel to exit without running the report.
For information on other alarm reports, click here.
