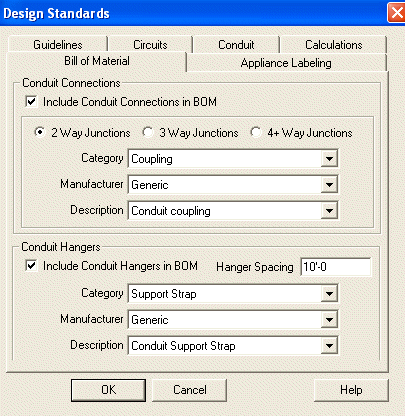

The Bill of Materials (BOM) Tab allows users to include and define conduit connections and conduit hangers into the materials list for each project.
Conduit ConnectionsPlease Note: The option box, Include Conduit Connections in BOM, is NOT automatically turned on by default. For emphasis, the image on the left displays all options selected.
Choosing the number of junctions will populate available choices for category, manufacturer and description in their respective drop-down menus.
Please Note: The Include Conduit Hangers in BOM option is NOT automatically turned on. The user's chosen category will auto-populate the manufacturer and description fields. Hanger Spacing defaults to 10', but is modifiable.
