Set User Label to Detail Sheet Name assigns the appliance's User Label to its Detail Sheet's name, if a Detail Sheet is available. Several manufacturers' parts have corresponding Detail Sheets available on their websites, intranets, etc., but some may not.
User Labels can be assigned within an appliance's Appliance Tab, in the Label dialog box, and via the Set Appliance Text and Set User Label commands. Data assigned in the Set User Label to Detail Sheet Name dialog is collected and used in a variety of reports.
.gif)

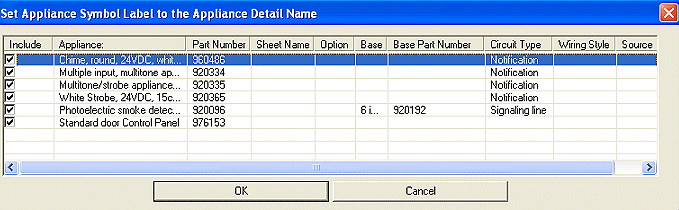

Though the diagram above does not display links to Detail Sheets specific to any manufacturer, it illustrates the command's dialog and the sorting of the column headers. To assign a User Label to its Detail Sheet Name, ensure the check-box at the far left (under the Include column header) is selected for the corresponding appliance.
